F4 Brushless Flight Controller and ESC (BLHeli_32)

Note: DO NOT POWER WITH 4S BATTERY.

This original BLHeli_32 16A ESC is out of stock, PLZ click here to choose the upgrade version.

BLHeli_32 is the 3rd generation ESC firmware after BLHeli and BLHeli_S, which is written for ESC‘s that utilize 32-bit MCU. With the increase in processing power, faster input signals with lower latency and higher update rate would be possible in BLHeli_32, such as Dshot1200!

Know more about BLHeli_32 ESC from Oscarliang's blog.

Check out Joshua Bardwell's video to know every detail of BLHeli_32

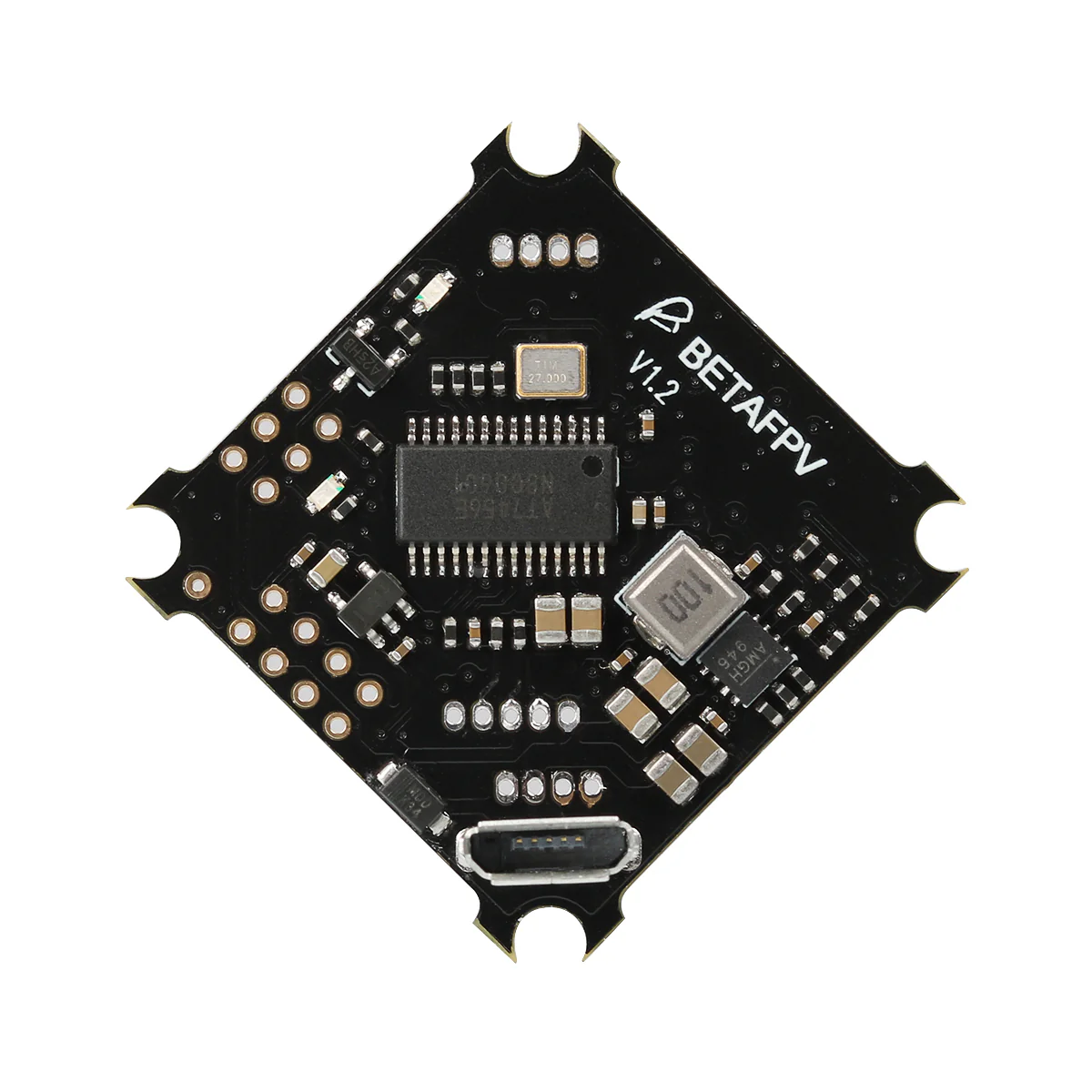

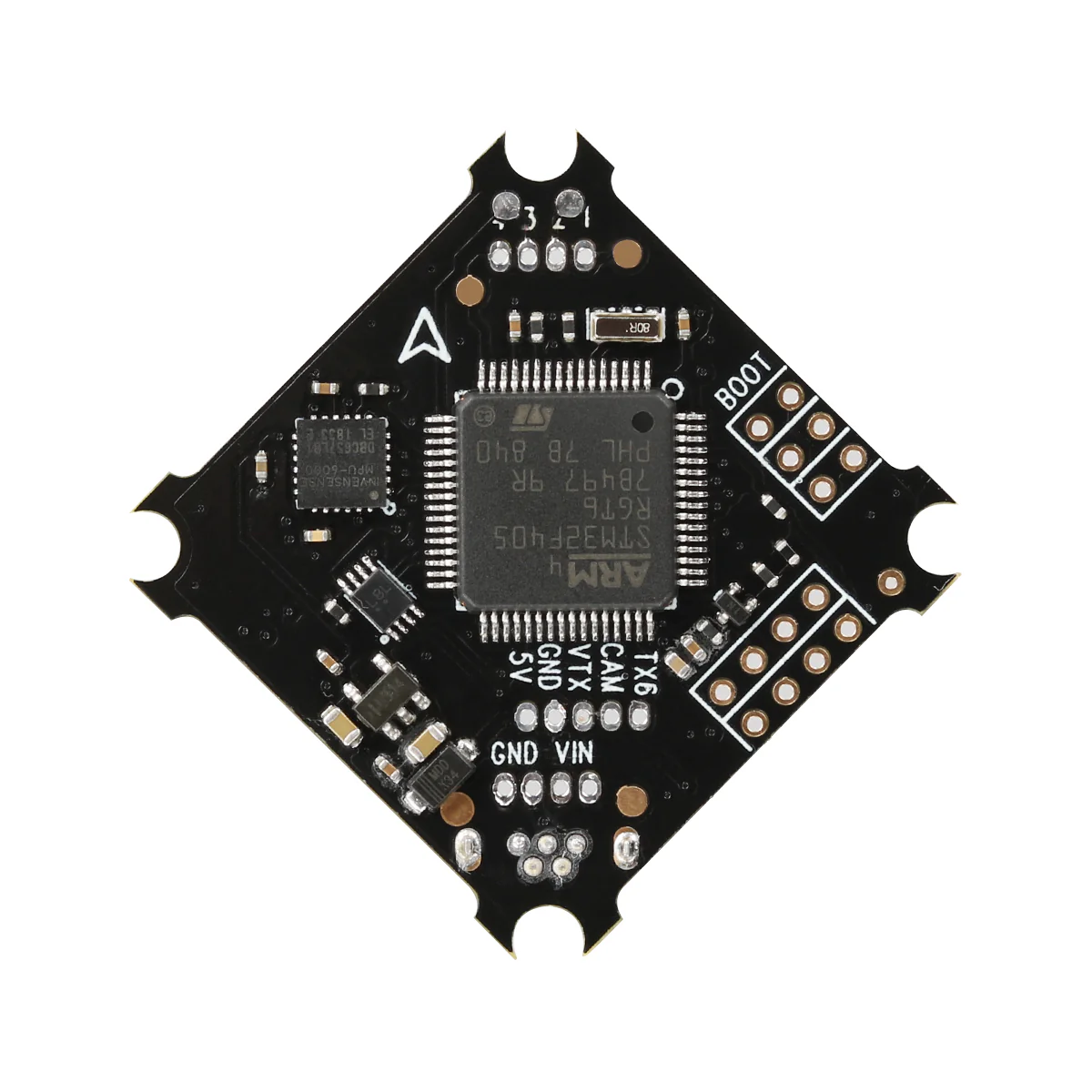

SPECIFICATIONS OF FC

The F4 FC board is the same one on Beta75X drone. Click here for more detail information about the FC board.

• CPU: STM32F405 (Overclock to 240MHz)
• Six-Axis: MPU6000
• Size: 26mm x 26mm, whoop mounting pattern
• Firmware version: Betaflight OMNIBUSF4SD (OBSD)
• OSD: Built-in BetaFlight OSD (STM32 controls OSD chip over SPI in DMA mode)
• TX02、RX02 ports is available, so that it could support TBS micro receiver
• RSSI ports is available
• Buzzer solder pads
• Support programable LED like WS2812 etc
• Weight: 2.7g

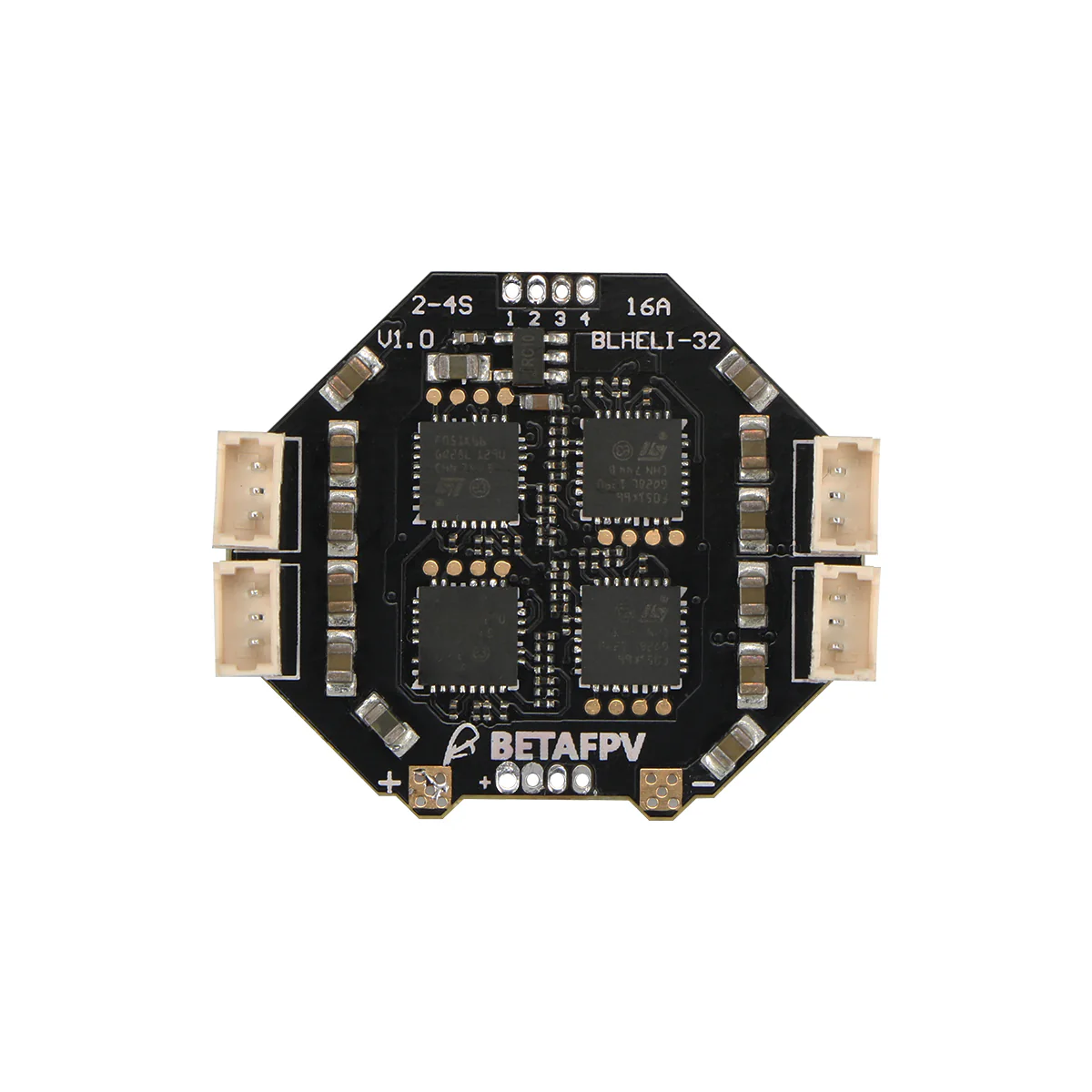

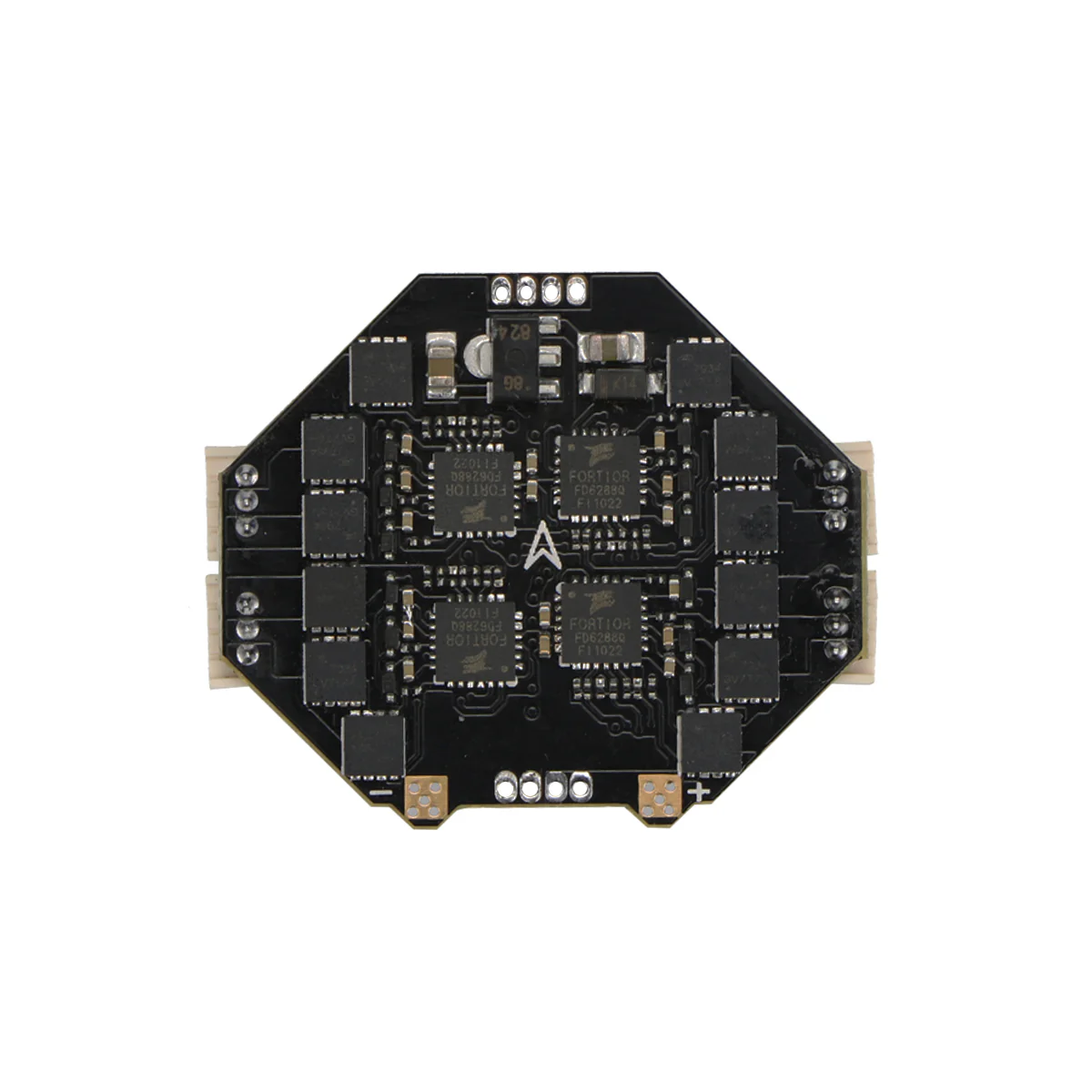

SPECIFICATIONS OF ESC

This ESC used to design for 4S battery. But under more extreme testing, it could only stand 2-3S voltage input. DO NOT POWER WITH 4S BATTERY.

• Support BLHELI_32
• Support PPM, Oneshot125, Oneshot42, Multishot, Dshot150, Dshot300, Dshot600, Dshot1200
• Input voltage: 2-3S lipo
• Cotinue current: 16A
• Peak current: 25A
• Firmware target: BETAFPV-16A-32bit
• MCU:STM32F051
• Motor Connectors: 1.25mm header pins connector

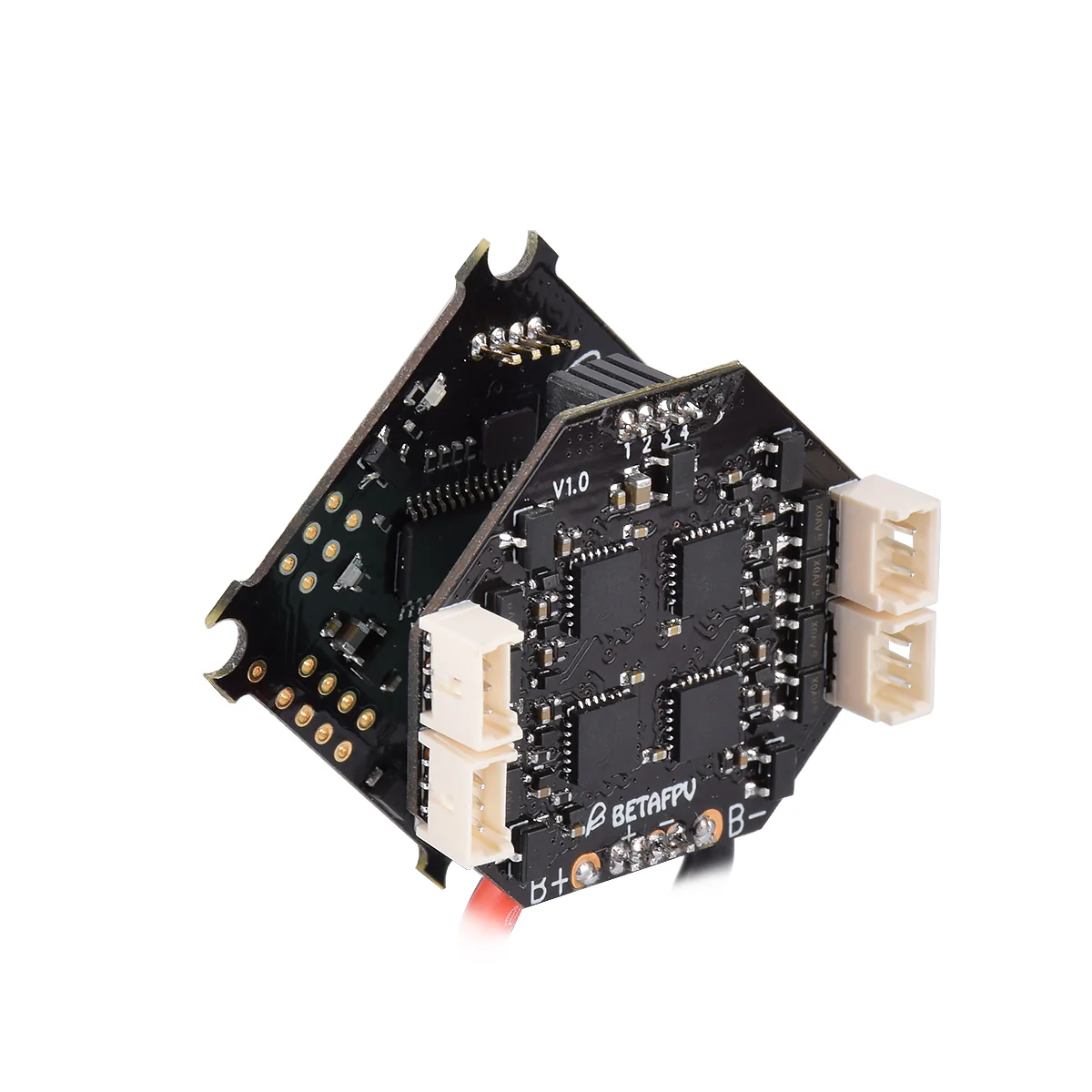

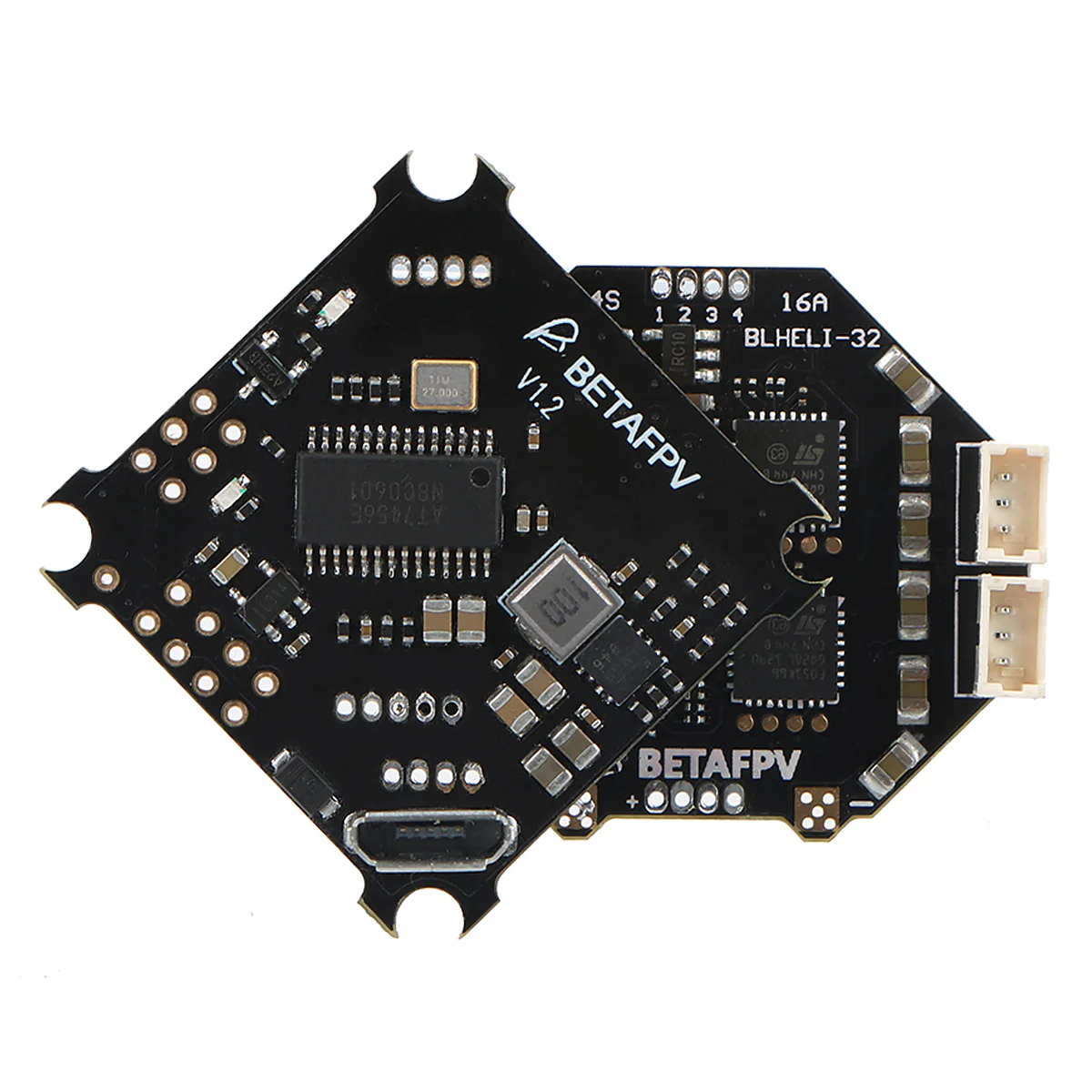

HOW TO ASSEMBLE FC & ESC

Note: Please assemble the FC and the ESC as the picture shown below, otherwise the fc will be BURNT to damage.

RECOMMENDED PARTS LIST

• Frame:  Beta85X frame
• Motors: 1105 motors / 1103 motors with 1.5mm header pins connector
• Battery: 450mAh 3S battery

RECOMMENDED RECEIVER CONNECTION

All the ports are available on this board. So that you could connect any receiver you want on the board. For example.

• Frsky XM/XM+ Receiver
• TBS receiver
• DSMX receiver

For the details about how to connect the receiver and configure in Betaflight, please check the F4 2S Brushless FC & ESC Manual.

PACKAGE

• 1 * F4 brushless flight controller
• 1 * 4in1 16A ESC board
• 4 * M1.2x4mm screws
• 4 * M1.4x5mm screws
• 4 * Anti-vibration ruber dampers
